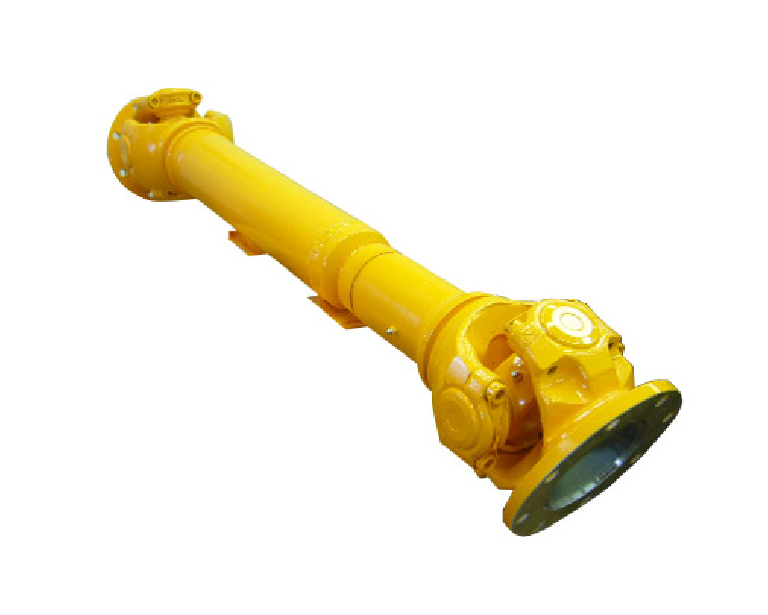

A Series
Compact general-purpose universal joints
- Joint rotation external diameter range
- 100-180 mm
- Maximum transmission torque range
- 2.3-12.3 kN・m
- Maximum bending angle
- 25°
- Main applications
- Paper machinery, small ships, rolling stock, conveying devices, vibrating machinery, and other general machinery
-

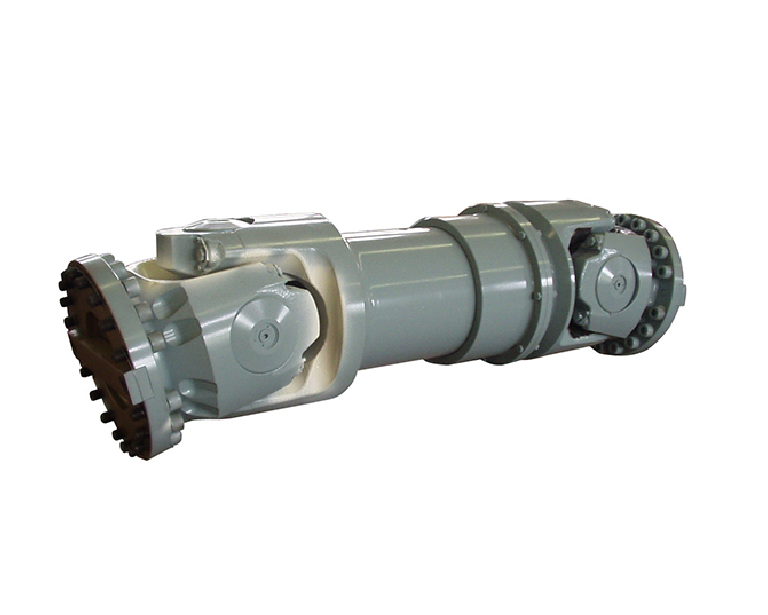

190 Series
Medium-sized, general-purpose universal joints
- Joint rotation external diameter range
- 225-350 mm
- Maximum transmission torque range
- 16.7-80.4 kN・m
- Maximum bending angle
- 15°
- Main applications
- Rolling stock, vessels, paper machinery, cranes, pumps, steelmaking equipment, pipe making equipment, and other general machinery
-

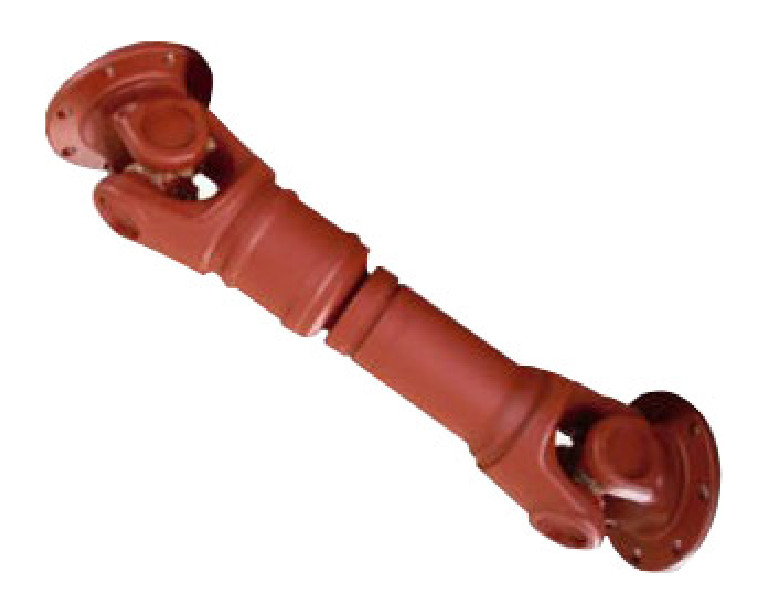

P Series
Universal joints for heavy loads
- Joint rotation external diameter range
- 180-550 mm
- Maximum transmission torque range
- 29-948 kN・m
- Maximum bending angle
- 10°
- Main applications
- Steelmaking equipment, resin machinery, crushing machines
-

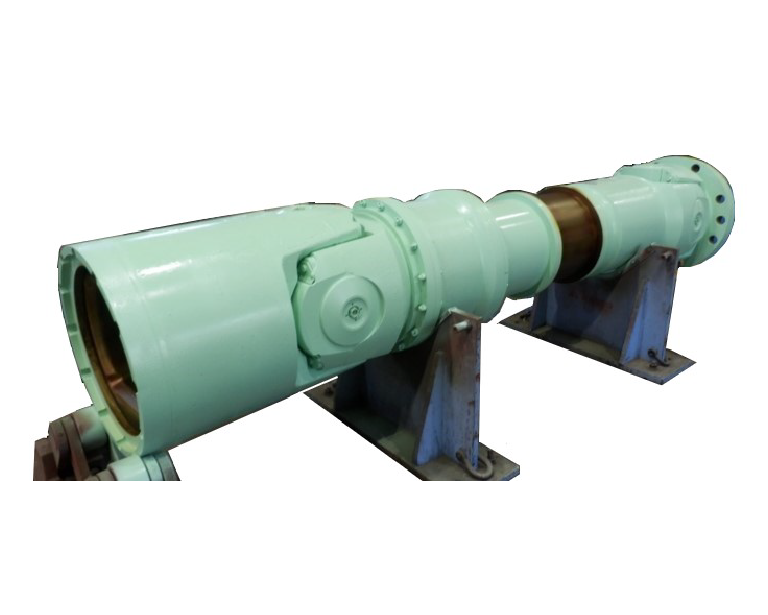

S Series
Universal joints for extremely heavy loads
- Joint rotation external diameter range
- 315-1200 mm
- Maximum transmission torque range
- 205-1200 kN・m
- Maximum bending angle
- 3°
- Main applications
- Rolling mills (steel, nonferrous metals)
-

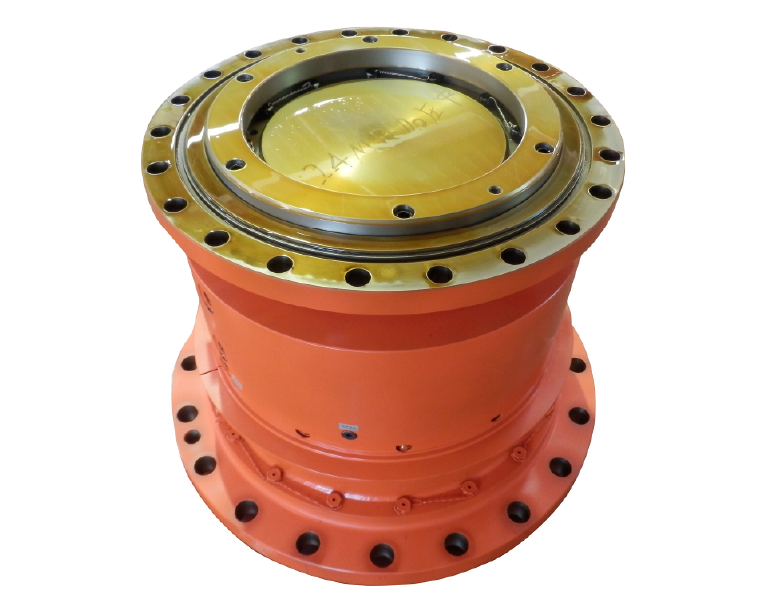

SAFETY FIT® (hydraulic expanding torque limiters)
SAFETY FIT is a safety device that blocks torque transmission by relieving hydraulic pressure and running idle when the load torque exceeds its set value.
- Supported shaft diameter
- 30-720 mm
- Maximum transmission torque range
- 0.3-7180 kN・m
-
SAFETY FIT® (rigid coupling)
After the mill roll is attached to the drive shaft, the rigid coupling is hydraulically expanded to stick to the mill roll shaft. As a result, the gap between the drive shaft and the mill roll is eliminated, and the eccentricity of the mill roll is reduced.
At the time of mill roll replacement, the hydraulic pressure of the rigid coupling is released so the coupling will shrink for easy replacement work.- Supported shaft diameter
- 30-720 mm
- Maximum transmission torque range
- 0.3-372 kN・m
